. . . Space Elevator

The following comments were provided by Dr. Desmond Penny of Southern Utah University, 11 Dec 2002:

Dear Roice:

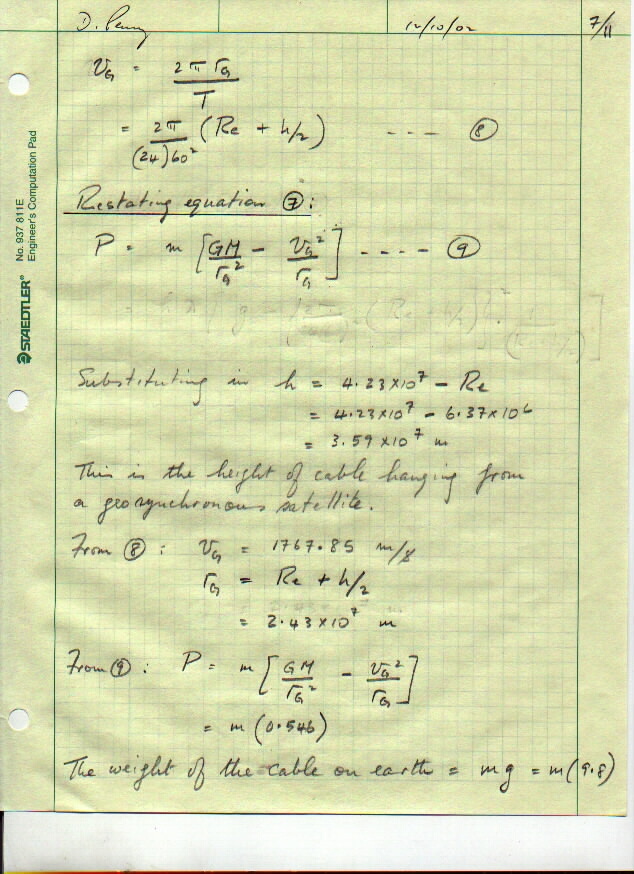

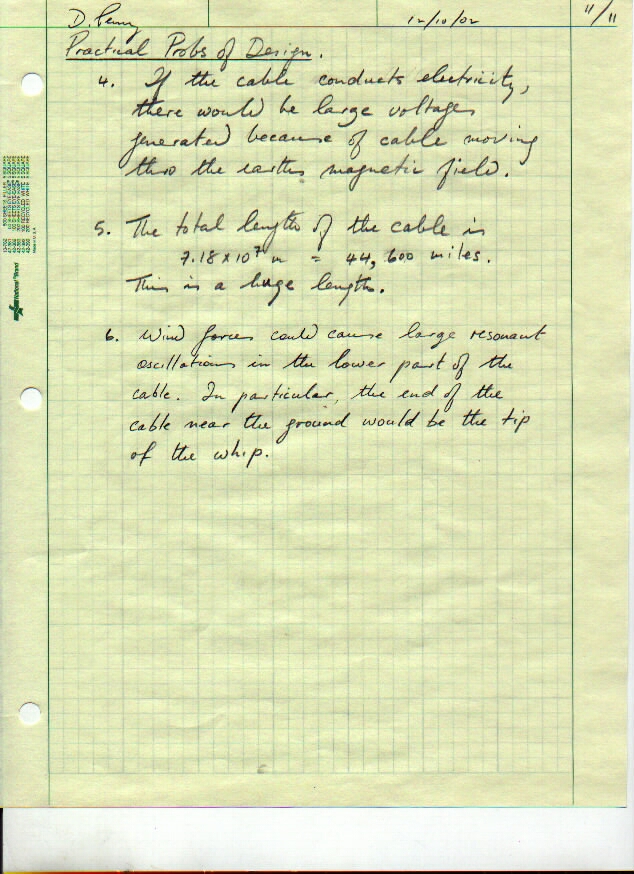

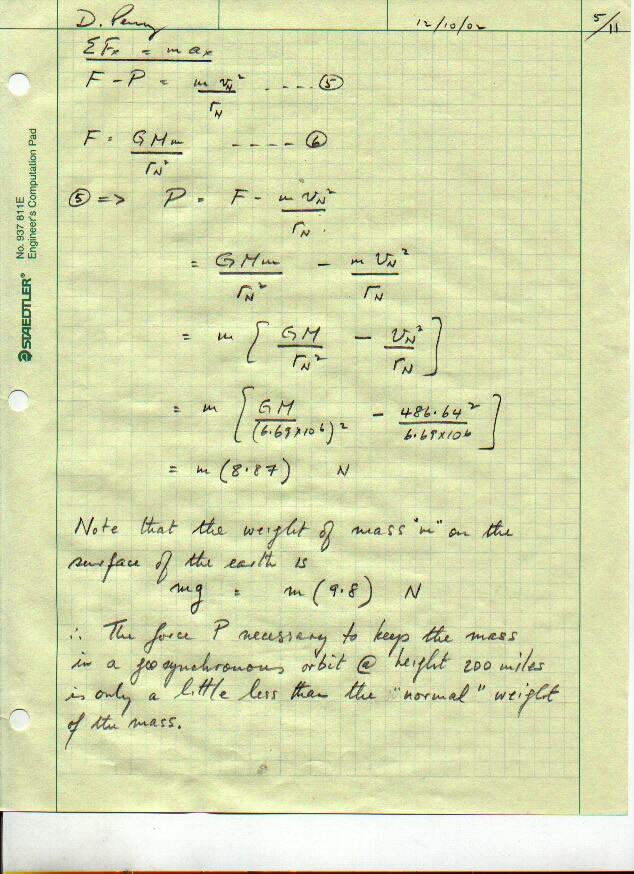

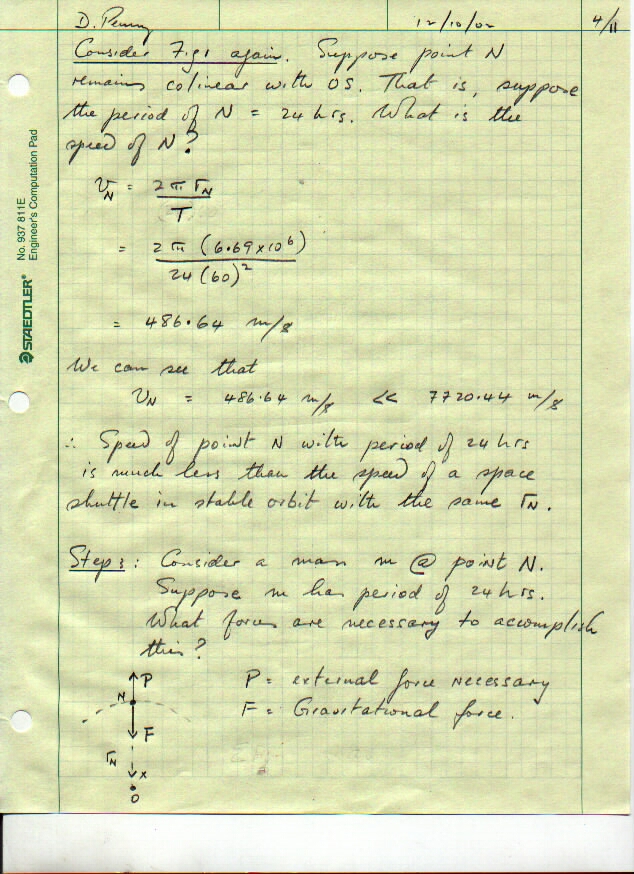

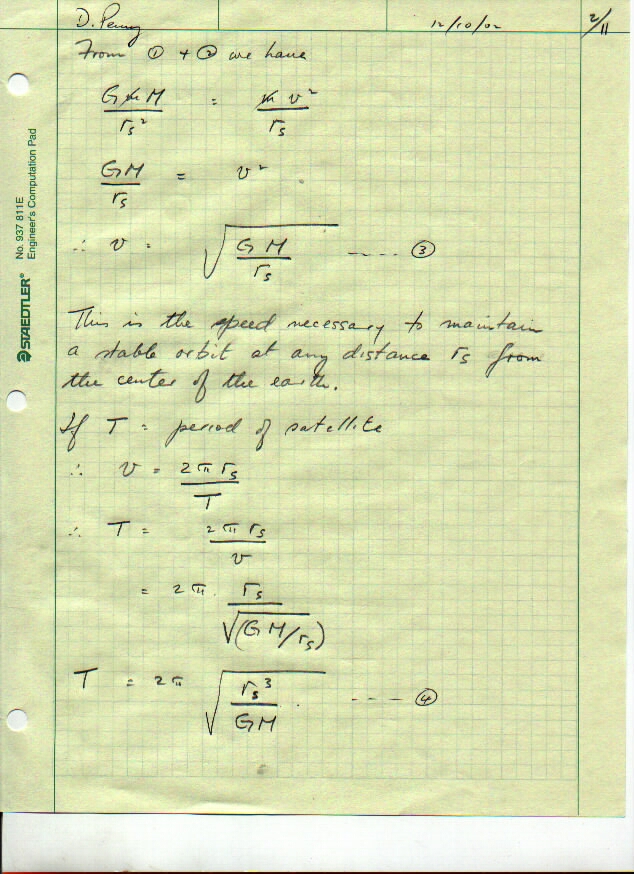

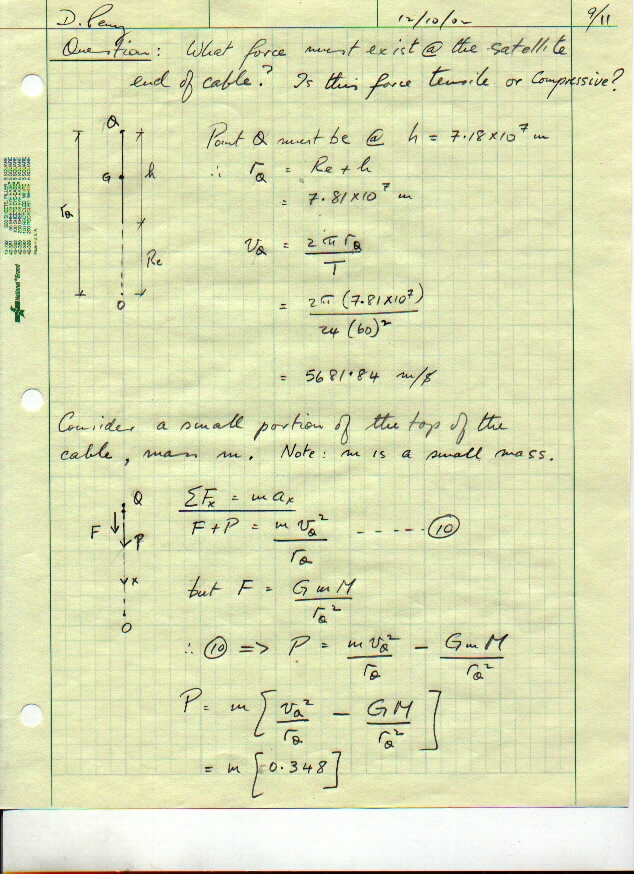

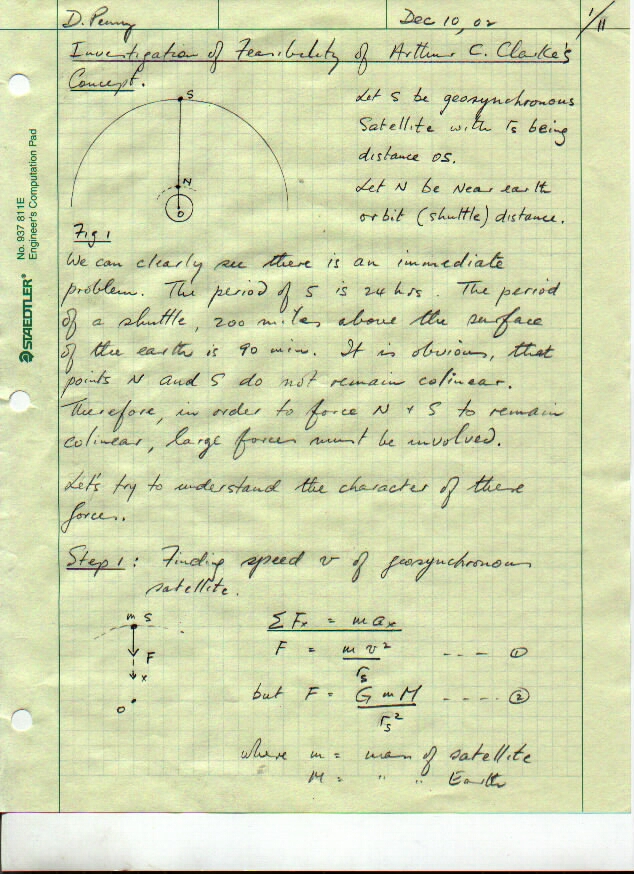

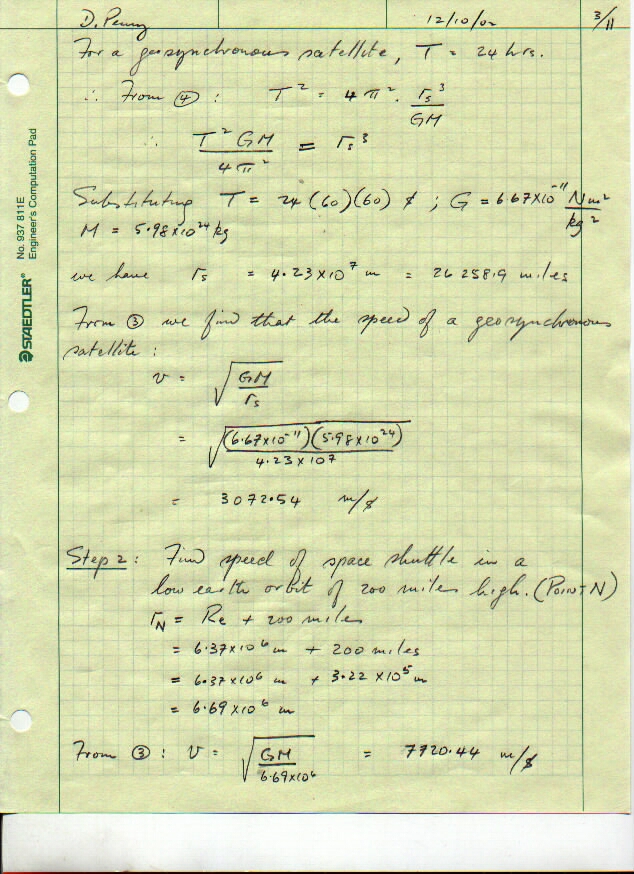

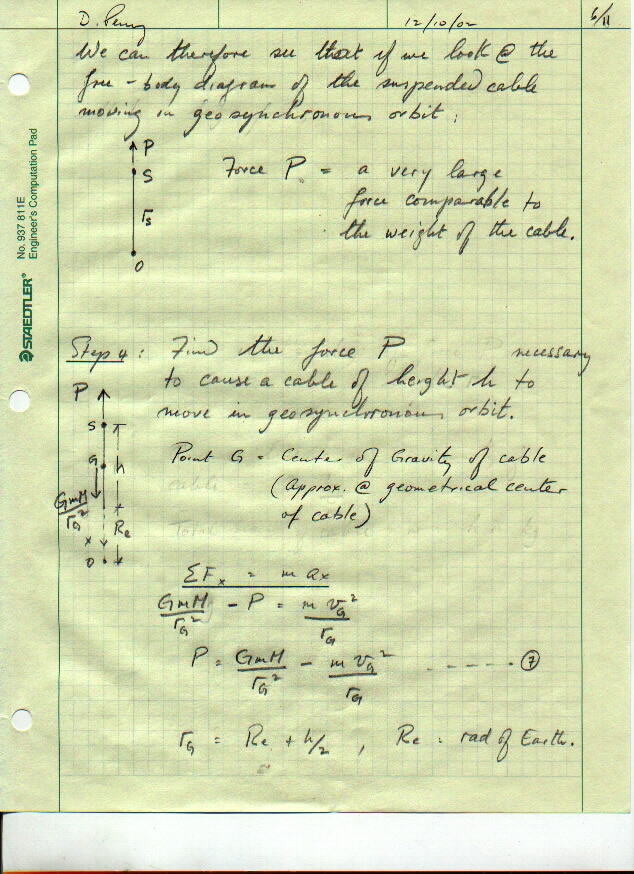

I was intrigued by your quote from Arthur C. Clarke, re the hanging cable from a geosynchronous satellite, so I was impelled last night to sit down and look at the equations. Attached are the 11 pages of my notes: Page 1; Page 2; Page 3; Page 4; Page 5; Page 6; Page 7; Page 8; Page 9; Page 10; Page 11.

It was quite an interesting problem. Initially, as you will see from my notes, I was convinced that there was a theoretical reason why this was impossible. However, during the calculations I changed my mind and discovered a way for it to be possible.

My overall conclusions were:

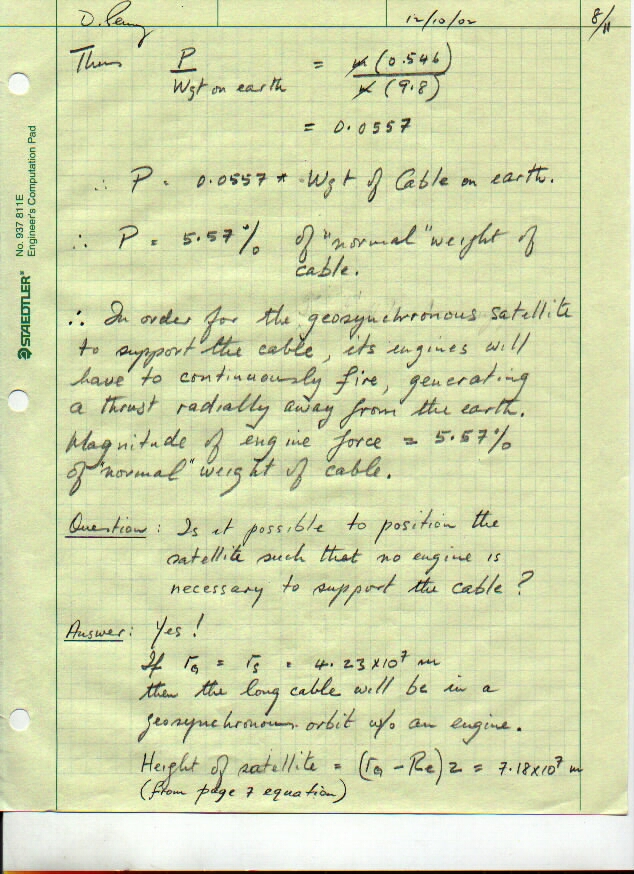

  1. In order for a cable to hang from a geosynchronous satellite at a height of 22,000 miles, the satellite would have to fire its engines radially away from the earth. These engines would need to provide a continuous thrust equal to 5.57% of the weight of the cable at the earth's surface.
  2. There IS a way to make the system work without an engine: Locate the satellite at a height of 44,000 miles! At this height the cable would float around with the earth, hanging vertically, every part of the cable and the satellite would be in geosynchronous orbit ! The satellite would have a speed of 5681 m/s. This speed is significantly greater than the speed of a normal geosynchronous satellite 3073 m/s at the 22,000 mile normal orbit.
  3. I have shown that there would be large tensile forces in the cable. The tensile force would start at zero near the earth's surface, increase to a maximum value near the middle of the cable, and decrease to zero again near the satellite. The max tensile force would equal 5.57% of the weight of half of the cable at the earth's surface (i.e. 2.79% of the entire weight of the cable at the earth's surface.)

Whether the concept is practically feasible is doubtful. Further calculations would throw more light on this aspect. For instance, it would be possible to consider a real material and determine the max diameter of the cable at the middle. You could then determine the overall mass of the cable made from this material. Such calculations would illuminate the practical feasibility of the concept. If you are interested I could perform this calculation with a specific material in mind. (If this is an exotic material, please supply me with the yield point and youngs modulus).

There are a few approximations in my calculations, which I am confident do not materially alter my conclusions. I did not check my calculations, however, I am satisfied that my conclusions are conceptually correct, even if there are errors.

Enjoy browsing through the attached pages :-).

Cheers,

Des



Delivered-To: rnelson@walden3d.com Date: Fri, 13 Dec 2002 09:34:43 -0700 From: "Des Penny" <Penny@suu.edu> To: <rnelson@walden3d.com> Subject: Clarke's Hypothesis Mime-Version: 1.0 Content-Transfer-Encoding: 7bit Content-Disposition: inline X-Guinevere: 2.0.8 ; Dear Roice: One further thought: The only requirement for geosynchronous orbit is that the center of gravity (point G) of the space station and the hanging rope, must be located at the 22,000 mile height. Thus, the more massive the space station, the closer it can be to the earth! The station could be brought down to a more reasonable height, say 30,000 miles. Obviously, the 22,000 mile height is an absolute limit. The precise positioning of the space station depends on: 1. Mass of the space station. 2. Mass and mass distribution of the cable. Cheers, Des
